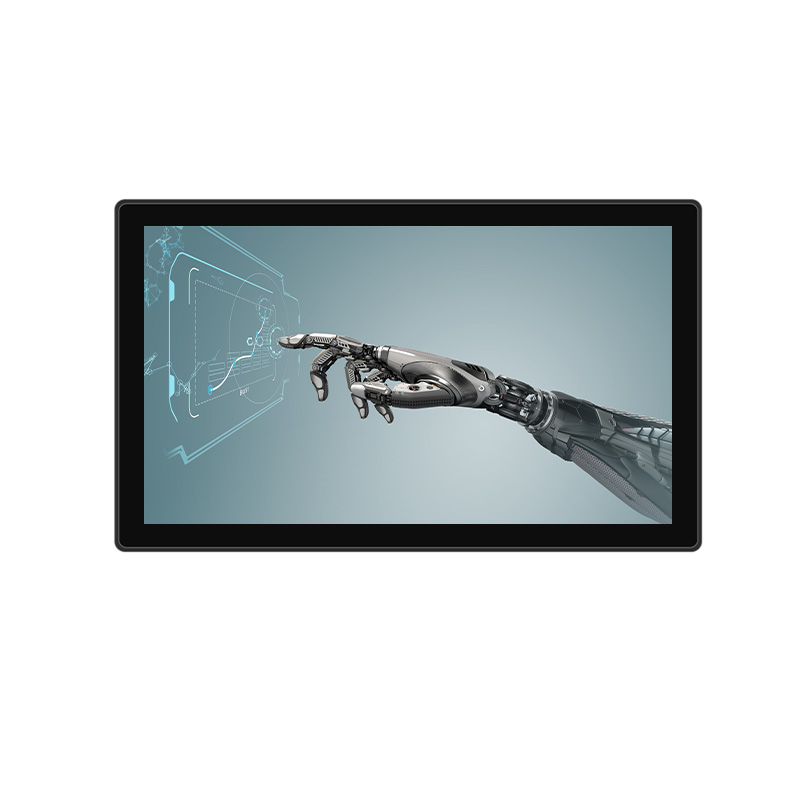

Touch Screen Monitor 32 Inch LCD Touch Monitor Capacitive Touch Screen Industria

Open Frame

Home / Open Frame / Touch Screen Monitor 32 Inch LCD Touch Monitor Capacitive Touch Screen Industria
Touch Screen Monitor 32 Inch LCD Touch Monitor Capacitive Touch Screen Industria

Touch Screen Monitor 32 Inch LCD Touch Monitor Capacitive Touch Screen Industria

In Stock
2 Year Warranty
Free Shipping

Capacitive Touch Panel 32 Inch Touch Screen Monitor Manufacturers Hot Sale ODM/OEM Embedded

Key Features

Capacitive Touch Panel 32 Inch Touch Screen Monitor Manufacturers Hot Sale ODM/OEM Embedded
Get Quote Back
CE/FCC/RoHS Certified
24/7 Technical Support
30-Day Returns

Product Specifications

Model Number:
LCD screen technical parameters
Monitor Dimensions: 32 inch diagonal
Aspect ratio: 16:9
Display Type : Active matrix TFT LCD, LED backlight
pixel size:0.1695mm×0.1695mm
The display size: 770mm(W) x464mm(H)
Active Area: 698.4mm(H) x 392.85mm(V)
Resolution: 1920 × 1080 @60 Hz
Response time : 8ms
Display Colors: 16.7 M
Brightness : LCD 400 cd/m2
Contrast ratio: 1200:1
View Angle((CR >10): L/R:89/89;U/D:89/89
Sweep frequency:31.5~60.2kHz; vertical: 56.3~75 Hz

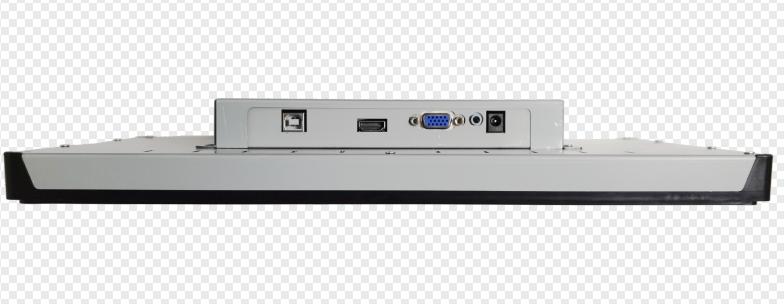

Input video formats: Analog VGA and digital HDMI(DP Optional）
Power consumption:Only Display 40W
Temperature: Operating: 0℃~50℃; Storage: -20℃~ 60℃
Humidity: Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non-condensing)
Warranty: 12 months
MTBF: 50000 hours
Touchscreen technical parameters
Touch Screen Type: Capacitive Touch Screen
Cover Glass: 3mm
Touch screen transmittance: 87%
Surface hardness: 6H
Touch Screen Interface: USB2.0
Touch Points: 10 points
Touch response time: ≤10ms
Touch method: Finger/Capacitive Pen
Single-point touch lifespan: Unlimited times
Touch linearity: ＜2%
Single-point operating system： Windows XP，Linux
Multipoint Operating System：Windows7/8/10/11，Android

Water and dust protection： Front vandal proof IK08
Mounting options：100mm or 75mm VESA mounting,open bracket mounting
Surface treatment: AG AR AF（Customizable）
Agency Approvals: FCC , CE , CB,China RoHS CQC
Power：External AC , input voltage-AC: 100-240VAC 50HZ-60HZ; input power connector
specification (on the all-in-one machine)-type: pin suffix socket
