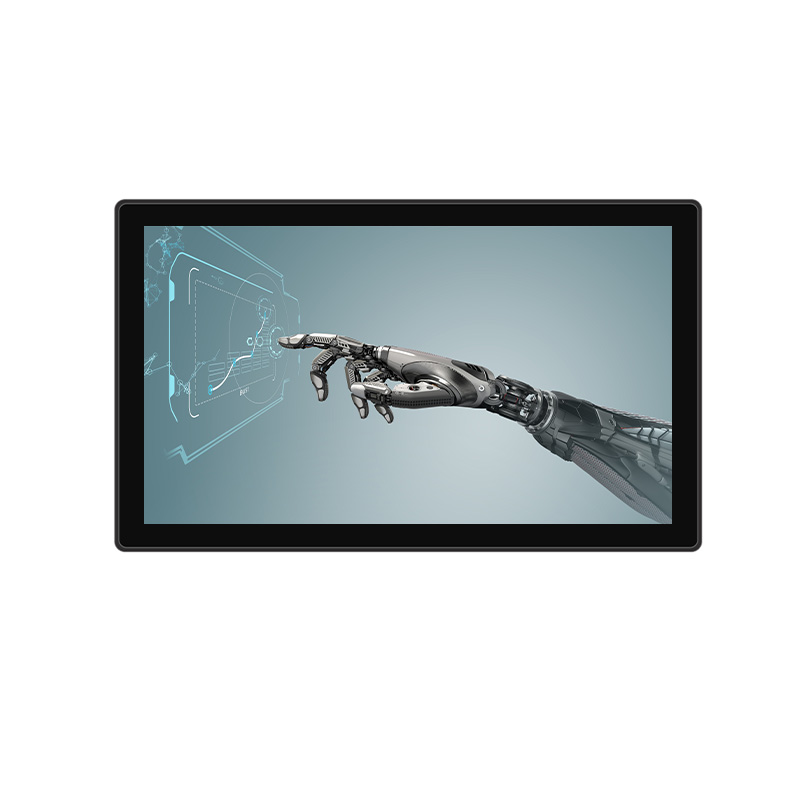

LCD USB Touchscreen Monitor 23.6 Inch TFT LED PCAP Touch Screen Monitor

LCD USB Touchscreen Monitor 23.6 Inch TFT LED PCAP Touch Screen Monitor

In Stock

2 Year Warranty

Free Shipping

Custom Size 15 Inch 15.6 Inch 17 Inch 19 Inch 21 Inch Display High Brightness Industrial Capacitive Touch Screen Monitor

Key Features

Custom Size 15 Inch 15.6 Inch 17 Inch 19 Inch 21 Inch Display High Brightness Industrial Capacitive Touch Screen Monitor

Get Quote Back

CE/FCC/RoHS Certified

24/7 Technical Support

30-Day Returns

Product Specifications

Model Number:
LCD screen technical parameters
Monitor Dimensions: 23.6 inch diagonal
Aspect ratio: 16:9
Display Type : Active matrix TFT LCD, LED backlight
pixel size:0.1695mm×0.1695mm
The display size: 576mm(W) x349mm(H)
Active Area: 521.28mm(H) x 293.22mm(V)
Resolution: 1920 × 1080 @60 Hz
Response time : 13ms
Display Colors: 16.7 M
Brightness : LCD 250 cd/m2
Contrast ratio: 3000:1
View Angle((CR >10): L/R:85/85;U/D:85/85
Sweep frequency:31.5~60.2kHz; vertical: 56.3~75 Hz
Input video formats: Analog VGA and digital HDMI(DP Optional）
Power consumption:Only Display 13.5W
Temperature: Operating: 0℃~50℃; Storage: -20℃~ 60℃
Humidity: Operating: 20% to 80% (no condensation); Storage: 20% to 80% (non-condensing)
Warranty: 12 months
MTBF: 50000 hours
Touchscreen technical parameters
Touch Screen Type: Capacitive Touch Screen
Cover Glass: 3mm
Touch screen transmittance: 87%
Surface hardness: 6H
Touch Screen Interface: USB2.0
Touch Points: 10 points
Touch response time: ≤10ms
Touch method: Finger/Capacitive Pen
Single-point touch lifespan: Unlimited times
Touch linearity: ＜2%
Single-point operating system： Windows XP，Linux
Multipoint Operating System：Windows7/8/10/11，Android

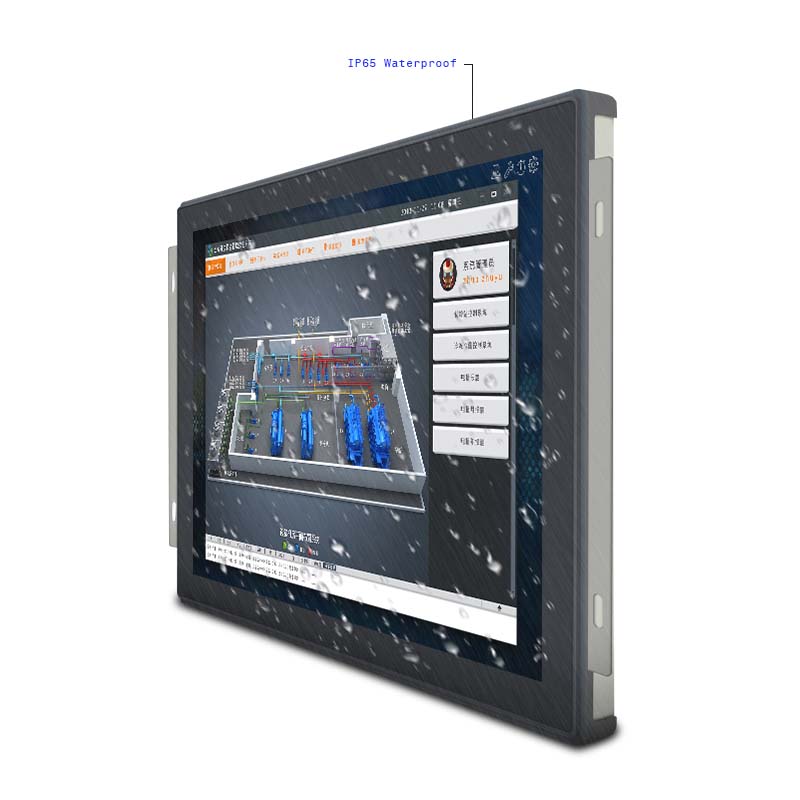

Water and dust protection： Front IP65，Front vandal proof IK08
Mounting options：100mm or 75mm VESA mounting,open bracket mounting
Surface treatment: AG AR AF（Customizable）
Agency Approvals: FCC , CE , CB,China RoHS CQC
Power：Needle Inner Diameter: 2.1 mm (± 0 .1 mm); Cartridge Length: 9.5 mm
(± 0 .5 mm)； Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm
(± 0 .1mm);
External DC , input voltage DC: 12V; Cartridge ID: 5.5 mm(± 0 .3 mm);
Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0 .3 mm);
INPUT POWER CONNECTOR SPECIFICATIONS (for
all in one PC) - Type: DC cartridge receptacle;
