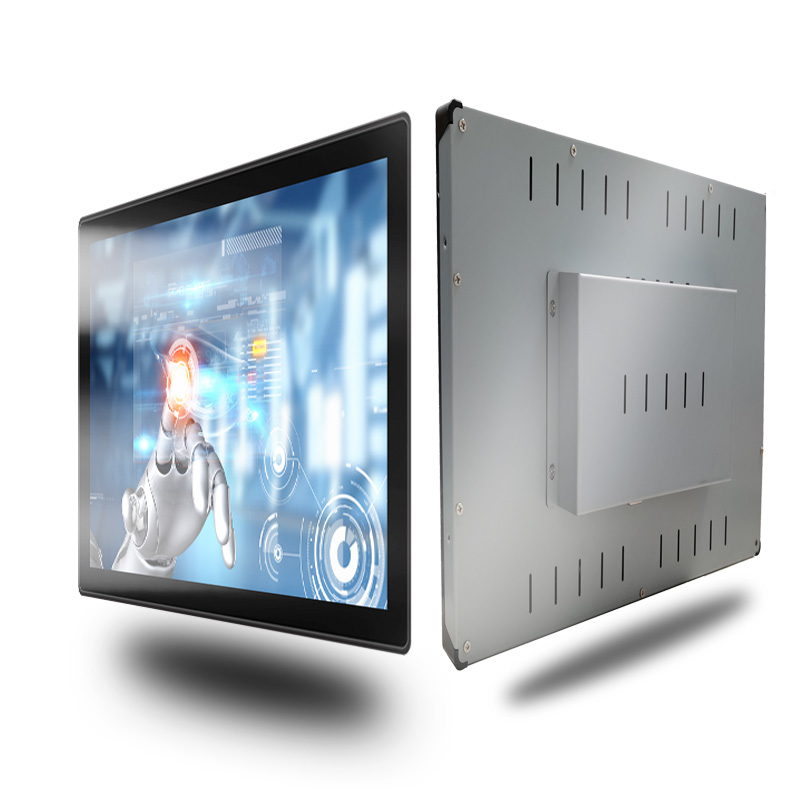

19 Inch 10 Point Capacitive Touch Screen Monitor Vga HD Input Lcd Monitor Indust

19 Inch 10 Point Capacitive Touch Screen Monitor Vga HD Input Lcd Monitor Indust

In Stock

2 Year Warranty

Free Shipping

19 Inch IP65 Waterproof 350 - 1000 Nits High Brightness LCD Display Industrial Embedded Screen Touch Monitor

Key Features

19 Inch IP65 Waterproof 350 - 1000 Nits High Brightness LCD Display Industrial Embedded Screen Touch Monitor

Get Quote Back

CE/FCC/RoHS Certified

24/7 Technical Support

30-Day Returns

Product Specifications

Model Number:
LCD screen technical parameters
Monitor Dimensions: 19 inch diagonal
Aspect ratio: 5:4
Display Type : Active matrix TFT LCD, LED backlight
pixel size:0.1695mm×0.1695mm
The display size: 428mm(W) x355mm(H)
Active Area: 376.32mm(H) x 301.056mm(V)
Resolution: 1280 × 1024 @60 Hz
Response time : 13ms
Display Colors: 16.7 M
Brightness : LCD 250 cd/m2
Contrast ratio: 1000:1
View Angle((CR >10): L/R:85/80;U/D:88/85
Sweep frequency:31.5~60.2kHz; vertical: 56.3~75 Hz

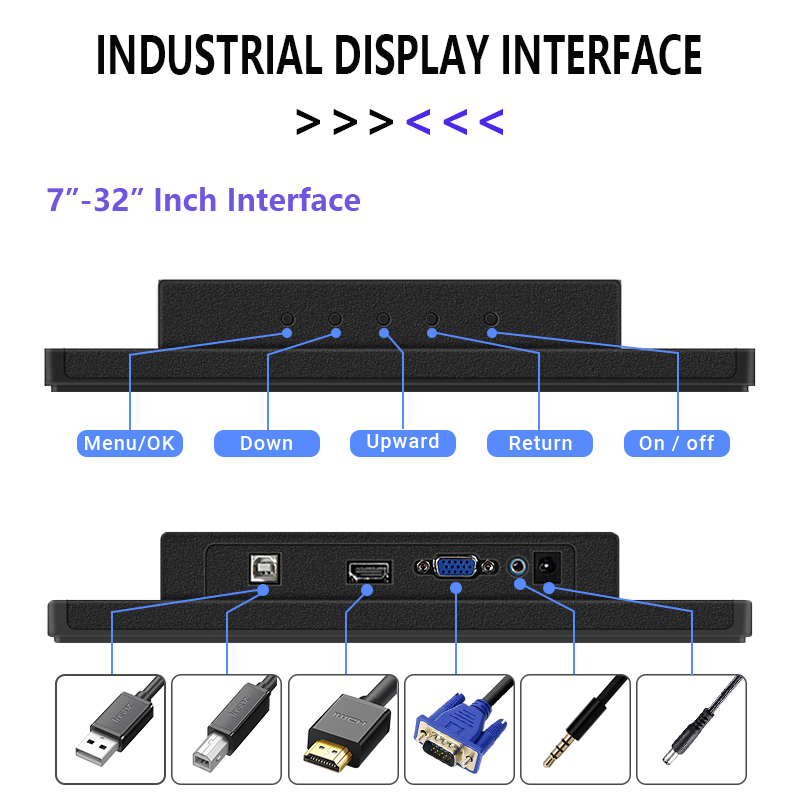

Input video formats: Analog VGA and digital HDMI(DP Optional）
Power consumption:Only Display 13.5W
Temperature: Operating: 0℃~50℃; Storage: -20℃~ 60℃
Humidity: Operating: 5% to 90% (no condensation); Storage: 5% to 90% (non-condensing)
Warranty: 12 months
MTBF: 50000 hours
Touchscreen technical parameters
Touch Screen Type: Capacitive Touch Screen
Cover Glass: 3mm
Touch screen transmittance: 87%
Surface hardness: 6H
Touch Screen Interface: USB2.0
Touch Points: 10 points
Touch response time: ≤10ms
Touch method: Finger/Capacitive Pen
Single-point touch lifespan: Unlimited times
Touch linearity: ＜2%
Single-point operating system： Windows XP，Linux
Multipoint Operating System：Windows7/8/10/11，Android

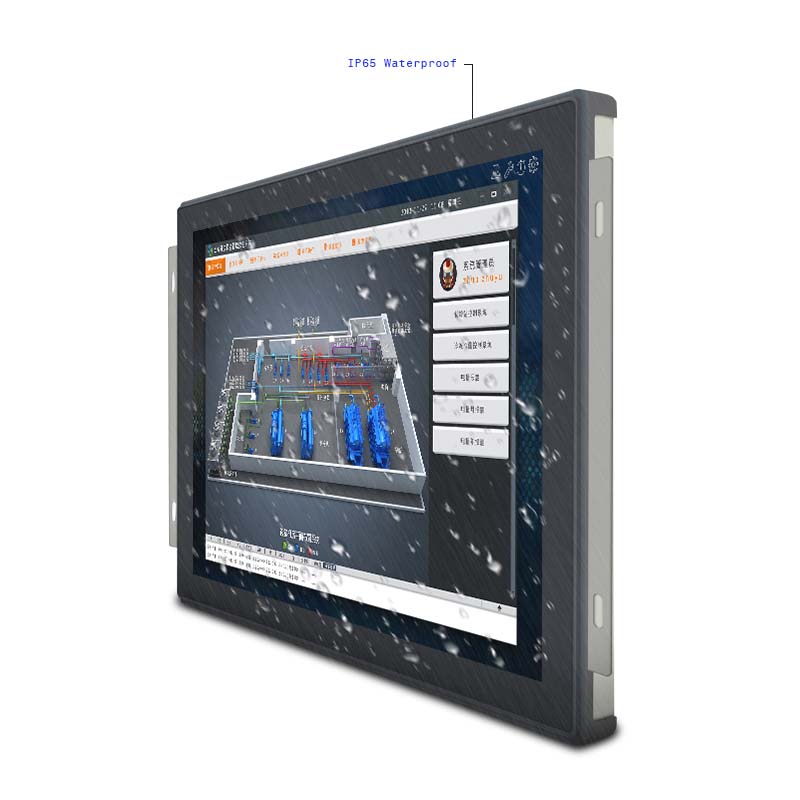

Water and dust protection： Front IP65，Front vandal proof IK08
Mounting options：100mm or 75mm VESA mounting,open bracket mounting
Surface treatment: AG AR AF（Customizable）
Agency Approvals: FCC , CE , CB,China RoHS CQC
Power：Needle Inner Diameter: 2.1 mm (± 0 .1 mm); Cartridge Length: 9.5 mm
(± 0 .5 mm)； Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm
(± 0 .1mm);
External DC , input voltage DC: 12V; Cartridge ID: 5.5 mm(± 0 .3 mm);
Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0 .3 mm);
INPUT POWER CONNECTOR SPECIFICATIONS (for
all in one PC) - Type: DC cartridge receptacle;
